pompe-gasoil-12/24v

12-24V pump

TRANSFER PUMP – DIESEL/NON-VEHICLE DIESEL
Flow rate 35 or 70 L/min

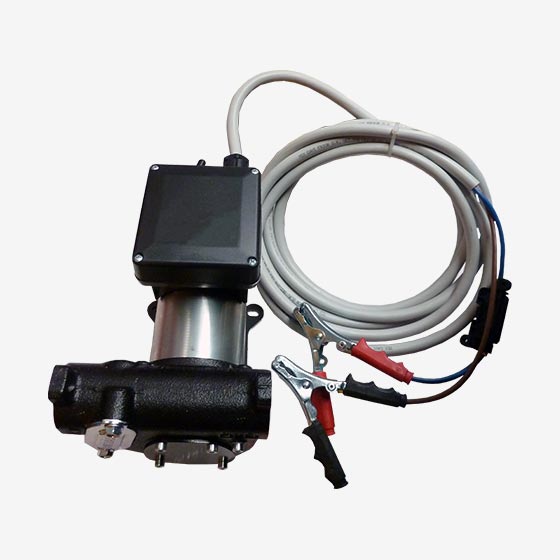

The KB12-24V pump can be used to transfer Diesel and non-vehicle diesel. It is connected directly to a 12 or 24 V battery using its cable with clamps.

 It can be easily built into our TransCube and Abbi transport tanks.

    More information

    Standard equipment



    • Brush motor powered by low-voltage direct current with closed intermittent cycle with protection rating IP55 according to IEC-EN 60034-5, directly clamped to the pump casing
    • Rotary self-priming vane pump, equipped with a by-pass relief valve
    • 4 linear meters of cable with battery clamps
    • Bellows strainer at the inlet

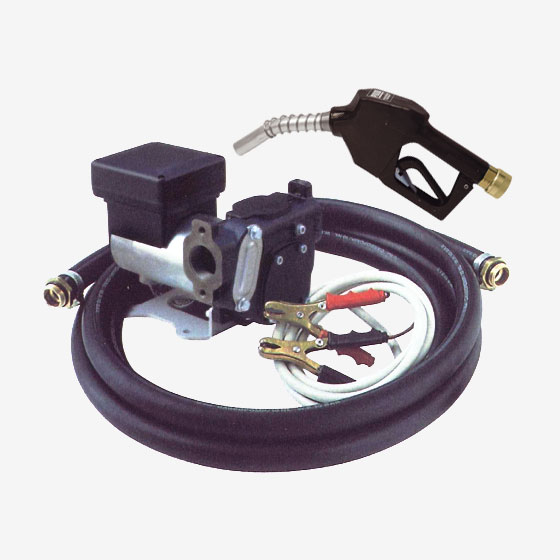

    Available as a kit with 4 meters of hose and automatic gun (KITKB12-24VA)

    Specifications

    The KB12-24V pump is suitable for the transfer of Diesel and non-vehicle diesel. It can be connected to either a 12 or 24 V battery with crocodile clips (supplied).

    Flow rate at pump outlet:

    • 12 V mode: up to 35 L/min
    • 24 V mode: up to 70 L/min

    Motor power and intensity: 12/24 V – 150/420 W – 16/25 A

    The KB12-24V allows maximum continuous working cycles of 30 minutes (do not run empty for more than one minute).

    Also available in 12 V version.



    Approval

    Compliant with Machinery Directive 2006/42/EC and Electromagnetic Compatibility Directive 2014/30/EU
