pompe-gasoil-12v

12V pump

TRANSFER PUMP – DIESEL/NON-VEHICLE DIESEL
Flow rate 40 L/min

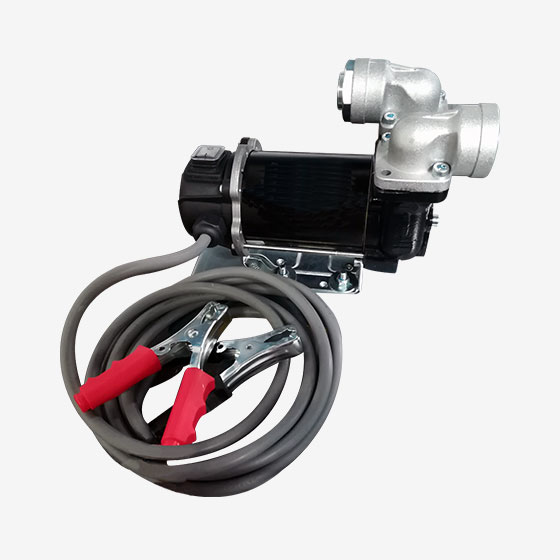

The KB12V pump is suitable for the transfer of Diesel and non-vehicle diesel. It connects to a 12 V battery, ideal for sites not connected to the mains.

 Its compact space requirement allows it to be easily built into our TransCube and Abbi transport tanks.

    More information

    Standard equipment



    • Brush motor powered by low-voltage direct current with closed intermittent cycle with protection rating IP55 according to IEC-EN 60034-5, directly clamped to the pump casing
    • Rotary self-priming vane pump, equipped with a by-pass relief valve
    • 4 linear meters of cable with battery clamps

    Available as a kit with 4 meters of hose and automatic gun (KITKB12VA)

    Specifications

    The KB12V pump can be used to transfer Diesel and non-vehicle diesel. It has a flow rate of up to 40 L/min (at the pump outlet).

    The pump connects to a 12 V battery using its 4 metres of cable with clamps (provided). Motor power and intensity: 12 V – 300 W – 22 A

    KB12V allows maximum working cycles of 30 continuous minutes (do not run empty for more than one minute).

    Weight: approx. 4 kg

    Also available in 12-24 V version.



    Approval

    Compliant with Machinery Directive 2006/42/EC and Electromagnetic Compatibility Directive 2014/30/EU
